TF Cards: Everything You Need to Know About Micro Storage Solutions

In an age where our digital devices demand more and more storage space, the role of memory cards has become increasingly vital. TF cards, often referred to as microSD cards, have been a staple in expanding storage for everything from smartphones to cameras, and even gaming consoles. Despite their small size, these tiny storage giants pack a punch when it comes to capacity and versatility. This comprehensive guide will walk you through everything you need to know about TF cards, from their history and functionality to choosing the right card for your needs, troubleshooting common issues, and much more.

What is a TF Card? Understanding the Basics

A TF card, or TransFlash card, is a type of removable flash memory card used for storing data. Originally introduced by SanDisk in 2004, the TF card was initially designed as a smaller alternative to the Secure Digital (SD) card, specifically for mobile phones. The term “TF card” was eventually phased out and replaced with “microSD card” when the SD Association adopted it as part of the SD card family.

TF cards are incredibly compact, measuring just 15mm x 11mm x 1mm, which makes them the smallest memory card format available. Despite their tiny size, these cards are capable of storing a significant amount of data, ranging from a few gigabytes to over a terabyte in the latest models. TF cards are used in a wide range of devices, including smartphones, tablets, cameras, drones, and gaming consoles, providing an easy and portable way to expand a device’s storage capacity.

The Evolution of TF Cards: From TransFlash to MicroSD

The journey of the TF card began in 2004 when SanDisk introduced the TransFlash card as a smaller alternative to the existing SD cards. The compact size of the TF card made it ideal for mobile devices, which were becoming increasingly popular at the time. The card quickly gained traction, and in 2005, the SD Association officially adopted the format, rebranding it as the microSD card.

This transition marked the beginning of the TF card’s integration into a broader range of devices. The microSD card retained the same dimensions and electrical specifications as the original TF card but was now part of a standardized format that ensured compatibility across different devices and manufacturers. Over the years, the capacity and speed of TF cards have significantly increased, with the introduction of microSDHC (High Capacity) and microSDXC (Extended Capacity) cards.

In addition to increased storage, TF cards have seen advancements in speed, with modern cards capable of supporting high-definition video recording and fast data transfer rates. The evolution of TF cards continues as manufacturers develop even higher capacity and faster cards to meet the growing demands of modern digital devices.

How TF Cards Work: Technology and Functionality

At the core of a TF card is flash memory, a type of non-volatile memory that retains data even when the device is turned off. Flash memory is made up of memory cells, each of which can store a bit of data. The cells are organized into pages and blocks, allowing for efficient data storage and retrieval.

When data is written to a TF card, it is stored in the memory cells in the form of electrical charges. The card’s controller manages the storage and retrieval of data, ensuring that data is written to and read from the correct locations on the card. The controller also handles error correction, wear leveling, and other functions that help maintain the integrity of the data stored on the card.

TF cards use a serial communication interface, which allows them to communicate with the host device (such as a smartphone or camera) at high speeds. The interface is based on the same technology used in SD cards, which ensures compatibility between TF cards and devices that support microSD cards.

The functionality of a TF card is also influenced by its speed class, which determines the minimum sustained write speed of the card. Speed classes are important for tasks such as recording video, where a consistent data transfer rate is necessary to avoid dropped frames and other issues. There are several speed classes available, including Class 2, 4, 6, 10, UHS (Ultra High Speed), and V (Video Speed) classes, each offering different levels of performance.

Choosing the Right TF Card: Factors to Consider

When it comes to choosing the right TF card for your needs, there are several factors to consider. The first and most obvious factor is storage capacity. TF cards are available in a wide range of capacities, from a few gigabytes to over a terabyte. The capacity you need will depend on the type of data you plan to store and the device you plan to use the card with. For example, if you plan to use the card in a smartphone for storing photos, videos, and apps, a higher capacity card may be necessary. On the other hand, if you only need to store a few files or documents, a smaller capacity card may suffice.

Another important factor to consider is the speed class of the TF card. As mentioned earlier, speed classes determine the minimum sustained write speed of the card, which is crucial for tasks such as video recording. If you plan to record high-definition video or capture high-resolution photos, a card with a higher speed class, such as UHS or V class, is recommended. For less demanding tasks, such as storing music or documents, a lower speed class may be sufficient.

It’s also important to consider the compatibility of the TF card with your device. While most modern devices support microSD cards, it’s always a good idea to check the specifications of your device to ensure compatibility. Some devices may have limitations on the maximum capacity or speed class of the TF card they can support.

Finally, consider the brand and quality of the TF card. While there are many brands of TF cards available, not all cards are created equal. It’s important to choose a reputable brand that offers a warranty and reliable customer support. Cheap, off-brand TF cards may be more prone to failure or data corruption, which can result in the loss of important data.

Applications of TF Cards: Versatility Across Devices

TF cards are incredibly versatile and can be used in a wide range of devices. Some of the most common applications of TF cards include:

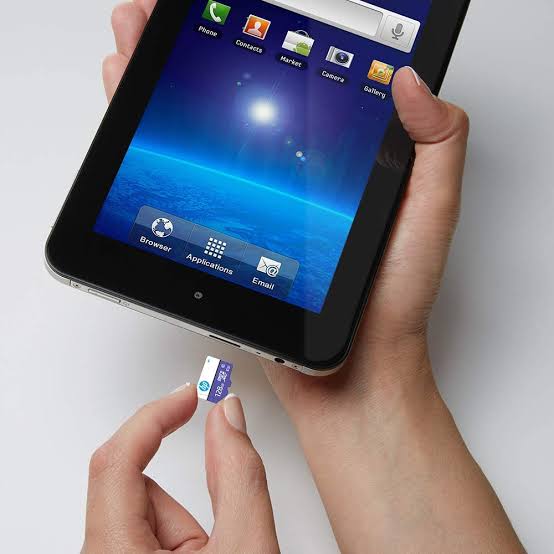

1. Smartphones and Tablets

TF cards are widely used in smartphones and tablets to expand storage capacity. This is particularly useful for devices with limited internal storage, as a TF card can provide additional space for apps, photos, videos, and other files. Many Android devices support TF cards, allowing users to move apps and files to the card to free up space on the device’s internal storage.

2. Cameras and Camcorders

TF cards are commonly used in digital cameras and camcorders for storing photos and videos. The small size of TF cards makes them ideal for use in compact cameras and action cameras, where space is limited. Additionally, the high-speed capabilities of modern TF cards make them suitable for recording high-definition and even 4K video.

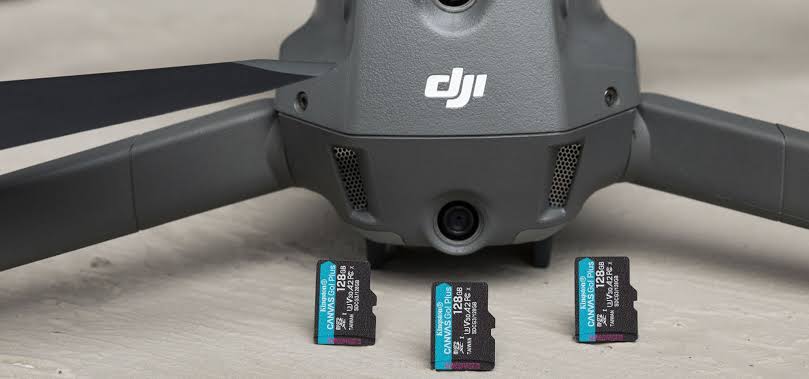

3. Drones

Drones often use TF cards to store aerial photos and videos. The small size and lightweight nature of TF cards make them ideal for use in drones, where minimizing weight is crucial for maximizing flight time. Additionally, the high-speed capabilities of modern TF cards ensure that video footage is recorded smoothly, without dropped frames or interruptions.

4. Gaming Consoles

Some portable gaming consoles, such as the Nintendo Switch, use TF cards to expand storage capacity for games and save data. This allows gamers to download and store more games on their console, without worrying about running out of space.

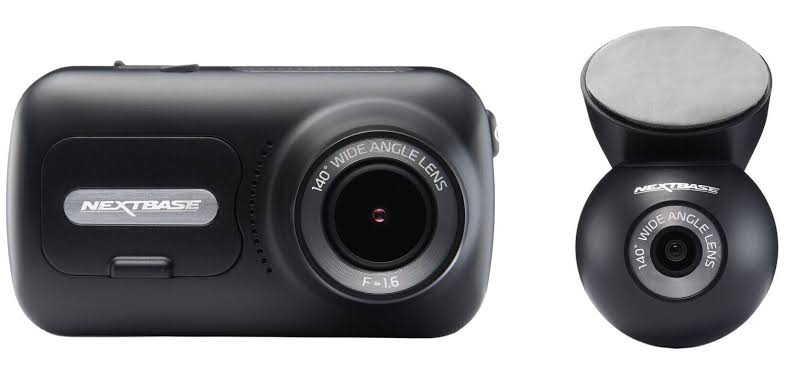

5. Dash Cams

TF cards are commonly used in dash cams to store video footage of driving. The small size and high-speed capabilities of TF cards make them ideal for recording continuous video footage, which is crucial for capturing important events or incidents on the road.

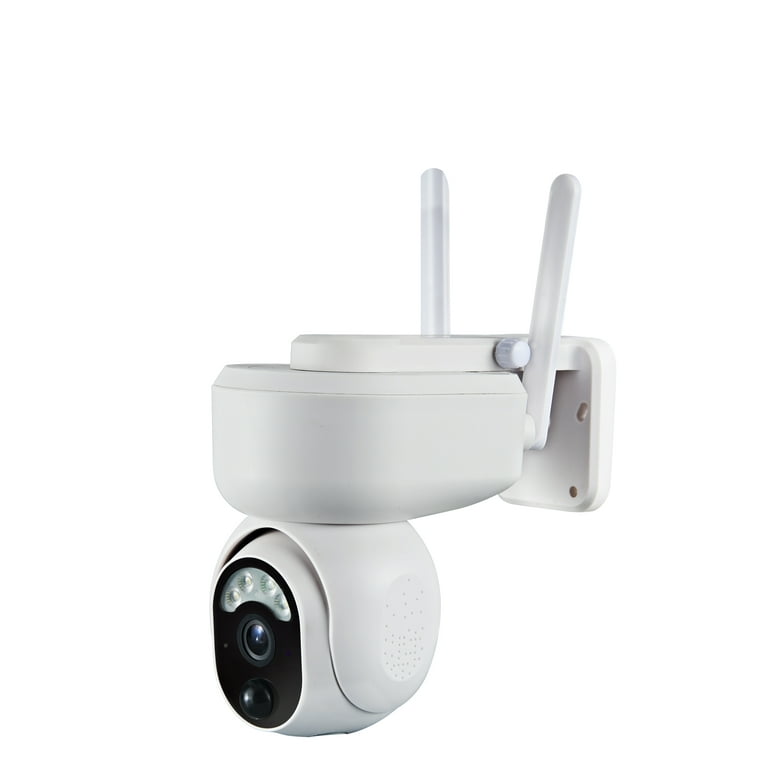

6. Security Cameras

Many security cameras use TF cards to store video footage locally. This provides an additional layer of security, as footage is stored on the camera itself, rather than relying solely on cloud storage. TF cards are also useful for storing footage in remote locations where internet access may be limited.

TF Card Speed Classes: What You Need to Know

When choosing a TF card, understanding speed classes is crucial, especially if you plan to use the card for tasks that require fast data transfer rates, such as video recording or gaming. Speed classes are used to indicate the minimum sustained write speed of the card, which is important for ensuring that data is written to the card quickly and efficiently.

1. Standard Speed Classes (Class 2, 4, 6, 10)

The standard speed classes are the most basic speed ratings for TF cards. They include Class 2, 4, 6, and 10, with Class 2 being the slowest and Class 10 being the fastest. These classes indicate the minimum sustained write speed in megabytes per second (MB/s). For example, a Class 10 card has a minimum sustained write speed of 10 MB/s, making it suitable for tasks such as recording HD video.

2. UHS Speed Classes (U1, U3)

UHS (Ultra High Speed) speed classes are a step up from the standard speed classes and are designed for more demanding tasks, such as recording Full HD or 4K video. UHS speed classes include U1 and U3, with U3 being the faster of the two. U1 cards have a minimum sustained write speed of 10 MB/s, while U3 cards have a minimum sustained write speed of 30 MB/s.

3. Video Speed Classes (V6, V10, V30, V60, V90)

Video Speed Classes are the newest speed ratings for TF cards and are specifically designed for video recording. These classes include V6, V10, V30, V60, and V90, with each number representing the minimum sustained write speed in megabytes per second. For example, a V30 card has a minimum sustained write speed of 30 MB/s, making it suitable for recording 4K video. The higher-end V60 and V90 cards are designed for professional-grade video recording, such as 8K video or 360-degree video, where extremely high data transfer rates are necessary to maintain video quality.

4. Application Performance Class (A1, A2)

In addition to the traditional speed classes, there are also Application Performance Classes, designated as A1 and A2. These classes are particularly important for users who plan to use TF cards in smartphones or tablets for running apps. The Application Performance Class indicates a card’s ability to handle random read and write operations, which are common when running apps from the card.

A1: A1 cards have a minimum random read of 1500 IOPS (Input/Output Operations Per Second) and a minimum random write of 500 IOPS. This makes them well-suited for basic app usage and data storage.
A2: A2 cards are faster, with a minimum random read of 4000 IOPS and a minimum random write of 2000 IOPS. These cards are designed for more intensive app use and multitasking, making them ideal for power users and those who want to maximize their device’s performance.

5. Bus Interface: UHS-I vs. UHS-II

Another important aspect of TF card performance is the bus interface, which determines how data is transferred between the card and the host device. The two primary types of bus interfaces are UHS-I and UHS-II:

UHS-I: UHS-I cards have a maximum theoretical transfer speed of 104 MB/s. These cards are widely used in most consumer electronics and are suitable for tasks like Full HD video recording, photography, and app storage.
UHS-II: UHS-II cards feature an additional row of pins, allowing for much faster transfer speeds, up to 312 MB/s. These cards are typically used in professional-grade equipment where high-speed data transfer is critical, such as in high-end cameras and video recorders.

When choosing a TF card, it’s essential to match the speed class and bus interface to your specific needs. For casual use, such as storing music, photos, or standard-definition videos, a Class 10 or U1 card will suffice. However, if you’re into 4K video recording, professional photography, or running multiple apps from your card, opting for a higher speed class like U3, V30, or A2 is advisable.

Common Issues with TF Cards and How to Fix Them

Like any piece of technology, TF cards can experience issues that can affect their performance or even render them unusable. Understanding common problems and how to resolve them can save you a lot of frustration and potential data loss.

1. TF Card Not Recognized by Device

One of the most common issues is when a TF card is not recognized by the device it’s inserted into. This can happen for several reasons:

Compatibility Issues: Ensure that the TF card is compatible with your device. Some older devices may not support higher-capacity cards (e.g., microSDXC), or the card may require a specific format (FAT32, exFAT).
Dirty or Damaged Card Slot: The contacts in the card slot may be dirty or damaged. Try cleaning the slot gently with compressed air or inserting the card into another device to test.
Card Formatting: The card may need to be reformatted to a format supported by your device. Be aware that formatting will erase all data on the card, so back up any important files first.

2. Corrupted Data or Inaccessible Files

Corruption can occur if the TF card is removed while data is being written, if the card is used in multiple devices without proper formatting, or if the card is subjected to physical damage. To resolve this:

Use Data Recovery Software: Specialized software can recover corrupted files or restore a corrupted file system. Popular options include Recuva, Disk Drill, and EaseUS Data Recovery Wizard.
Reformat the Card: If recovery isn’t possible, reformatting the card can restore its functionality, though this will erase all data. To reformat, insert the card into a computer, right-click the drive in “My Computer” or “This PC,” and select “Format.”

3. Slow Performance

If your TF card is operating slower than expected, it could be due to several factors:

Low Speed Class: Ensure the card is rated for the tasks you’re performing. Using a Class 4 card for 4K video recording, for example, will result in poor performance.
Fragmentation: Like hard drives, TF cards can become fragmented over time, leading to slower performance. Reformatting the card periodically can help maintain speed.
Excessive Wear: TF cards have a limited number of write cycles. If your card is old or has been heavily used, it might be nearing the end of its lifespan, causing slower speeds.

4. Physical Damage

TF cards are robust, but they can still be damaged if handled improperly. Bending the card, exposing it to water, or dropping it can cause physical damage. Unfortunately, physical damage is often irreparable, and data recovery might not be possible. To prevent damage:

Use a Card Reader: Avoid frequently inserting and removing the card from devices. Instead, use a card reader connected to a computer for file transfers.
Store Properly: When not in use, store the TF card in a protective case to prevent physical damage.

5. Write Protection

Sometimes, a TF card may become write-protected, preventing new data from being added or existing data from being deleted. This can be due to a hardware switch (on adapters) or a corrupted file system. To resolve:

Check the Adapter: If using a microSD to SD adapter, make sure the write-protect switch is in the unlocked position.
Remove Write Protection via Command Prompt: On a Windows PC, open the Command Prompt, type diskpart, then list disk, select disk [number], and attributes disk clear readonly. This can remove software write protection.

Maintaining and Maximizing TF Card Lifespan

TF cards, like all flash memory, have a finite lifespan, dictated by the number of read/write cycles they can endure. However, with proper care, you can maximize the longevity of your TF card and ensure it serves you reliably over time.

1. Avoid Frequent Writes and Deletes

Each time data is written to or deleted from a TF card, the memory cells wear down slightly. To extend the lifespan, avoid using the card for tasks that involve constant writing and deleting of data, such as running an operating system or recording continuous video.

2. Regularly Backup Data

Even with the best care, TF cards can fail without warning. Regularly backing up your data to a computer or cloud storage ensures that you won’t lose important files if your card fails.

3. Use Quality Card Readers

A low-quality card reader can corrupt data or even physically damage your TF card. Invest in a high-quality, reputable card reader that provides stable connections and protects your card during use.

4. Handle with Care

TF cards are small and easy to lose or damage. Always handle them by the edges to avoid touching the contacts, which can cause connectivity issues. Additionally, store them in protective cases when not in use.

5. Keep Firmware Updated

Some devices allow firmware updates that can improve the compatibility and performance of TF cards. Check your device manufacturer’s website periodically for updates that might enhance your card’s performance or longevity.

The Future of TF Cards: Emerging Technologies and Trends

As digital devices continue to evolve, so too do the technologies that support them. The future of TF cards is likely to involve further increases in storage capacity, speed, and durability, driven by advancements in flash memory technology and consumer demand.

1. Increasing Storage Capacities

As 4K and even 8K video recording become more common, the demand for higher-capacity TF cards will continue to grow. We can expect to see cards with capacities exceeding 2TB in the near future, allowing users to store vast amounts of data without needing to swap cards frequently.

2. Faster Data Transfer Speeds

With the rise of high-resolution video and the increasing need for quick data access in applications like gaming and virtual reality, faster TF cards will be essential. Future developments may bring UHS-III and beyond, offering speeds that rival or surpass current SSDs.

3. Improved Durability

As more consumers use TF cards in extreme conditions—such as action cameras, drones, and security systems—manufacturers will continue to improve the durability of these cards. We may see more rugged cards that are not only waterproof and shockproof but also resistant to extreme temperatures and magnetic fields.

4. Integration with Emerging Technologies

The rise of technologies like the Internet of Things (IoT) and 5G could lead to new uses for TF cards. For instance, IoT devices may require local storage for data logging or firmware updates, while 5G-enabled devices will benefit from the high-speed data capabilities of next-generation TF cards.

5. Sustainability and Recycling

As environmental concerns become more pressing, there will be a greater emphasis on sustainability in the production and disposal of TF cards. Manufacturers may begin to explore eco-friendly materials and processes to reduce the environmental impact of these products. Additionally, we may see more initiatives aimed at recycling or repurposing old or damaged TF cards, minimizing electronic waste.

6. Enhanced Security Features

With increasing concerns about data privacy and security, future TF cards may come equipped with advanced encryption and authentication technologies. This could include built-in encryption engines or biometric security measures, ensuring that sensitive data stored on the card is protected against unauthorized access.

7. AI-Driven Performance Optimization

As artificial intelligence (AI) continues to permeate various aspects of technology, we might see AI-driven performance optimization in TF cards. This could involve intelligent data management, where the card automatically prioritizes and optimizes the storage of frequently accessed data, or predictive maintenance, where the card alerts users to potential issues before they occur.

Conclusion: The Indispensable Role of TF Cards in Modern Technology

TF cards have come a long way since their introduction as a compact storage solution for mobile devices. Today, they are an essential component in a wide range of applications, from smartphones and cameras to drones and gaming consoles. Their small size, coupled with ever-increasing storage capacities and data transfer speeds, has made them indispensable in a world where digital content is constantly expanding.

Understanding the nuances of TF cards, including their speed classes, compatibility, and potential issues, empowers users to make informed decisions when selecting the right card for their needs. Whether you’re a casual user looking to expand your smartphone’s storage or a professional videographer needing reliable, high-speed storage for 4K video recording, there’s a TF card out there that meets your requirements.

As technology continues to evolve, so too will TF cards. The future promises even more impressive capabilities, from higher capacities and faster speeds to enhanced durability and security features. By staying informed about these advancements, users can ensure they are always equipped with the best possible storage solutions for their digital lives.

In a world where data is king, TF cards offer a simple, yet powerful way to keep your digital content at your fingertips, ready to be accessed, shared, and enjoyed whenever you need it.
